Axelent is een van de toonaangevende fabrikanten van machineafschermingen op de markt. Het complete systeem dat wij leveren voldoet aan de huidige richtlijnen en normen.

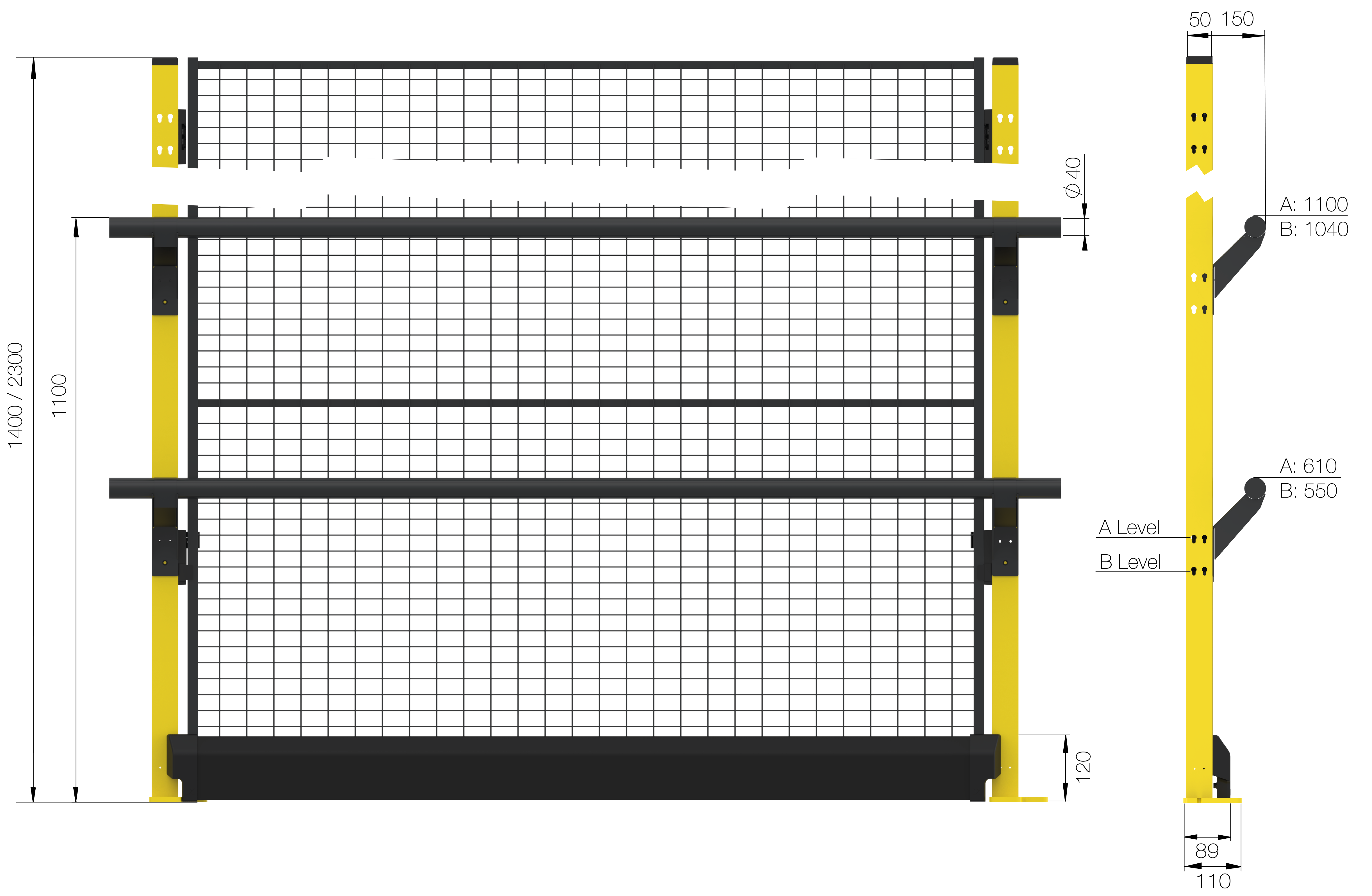

X-Rail Fall Protection height 2300 mm
Our X-Rail fall protection system can be used as an edge protection for mezzanine floors. The system is a modification of our X-Guard range and therefore the system can fill dual purposes, mezzanine protection and machine guarding.
Mesh panels
| CAD | Artikel | Breedte (mm) | Hoogte (mm) | Kleur | |
|---|---|---|---|---|---|
|
|
W322-220025 | 250 | 2200 | Grafiet zwart (RAL 9011) |
|
|
|
W322-220040 | 400 | 2200 | Grafiet zwart (RAL 9011) |
|
|
|
W322-220050 | 500 | 2200 | Grafiet zwart (RAL 9011) |
|
|
|
W322-220060 | 600 | 2200 | Grafiet zwart (RAL 9011) |
|
|
|
W322-220070 | 700 | 2200 | Grafiet zwart (RAL 9011) |
|
|
|
W322-220080 | 800 | 2200 | Grafiet zwart (RAL 9011) |
|
|
|
W322-220090 | 900 | 2200 | Grafiet zwart (RAL 9011) |
|
|
|
W322-220100 | 1000 | 2200 | Grafiet zwart (RAL 9011) |
|
|
|
W322-220110 | 1100 | 2200 | Grafiet zwart (RAL 9011) |
|
|
|
W322-220120 | 1200 | 2200 | Grafiet zwart (RAL 9011) |
|
|
|
W322-220130 | 1300 | 2200 | Grafiet zwart (RAL 9011) |
|
|
|
W322-220140 | 1400 | 2200 | Grafiet zwart (RAL 9011) |
|
|
|
W322-220150 | 1500 | 2200 | Grafiet zwart (RAL 9011) |
|
Posts 50x50mm
| CAD | Artikel | Hoogte (mm) | Kleur | |
|---|---|---|---|---|
|
|
P1170-230 | 2300 | Zink geel (RAL 1018) |
|
Our X-Rail fall protection system can be used as an edge protection for mezzanine floors. The system is a modification of our X-Guard range and therefore the system can fill dual purposes, mezzanine protection and machine guarding.

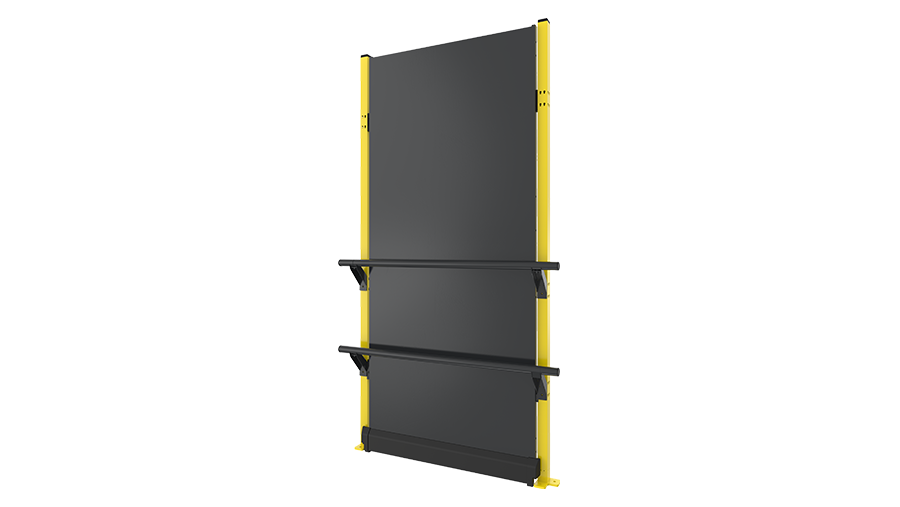

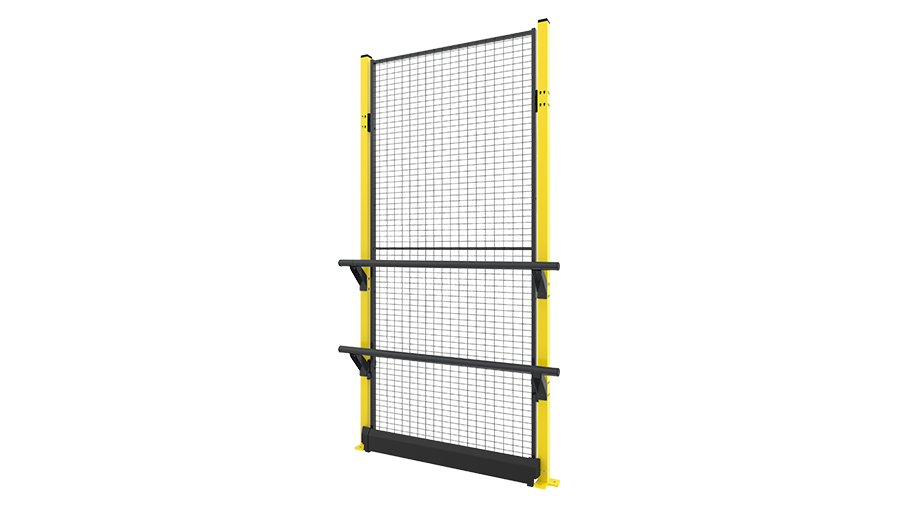

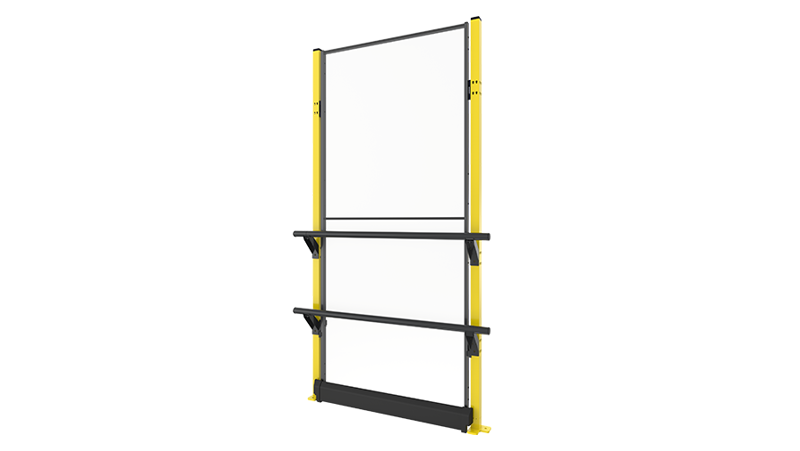

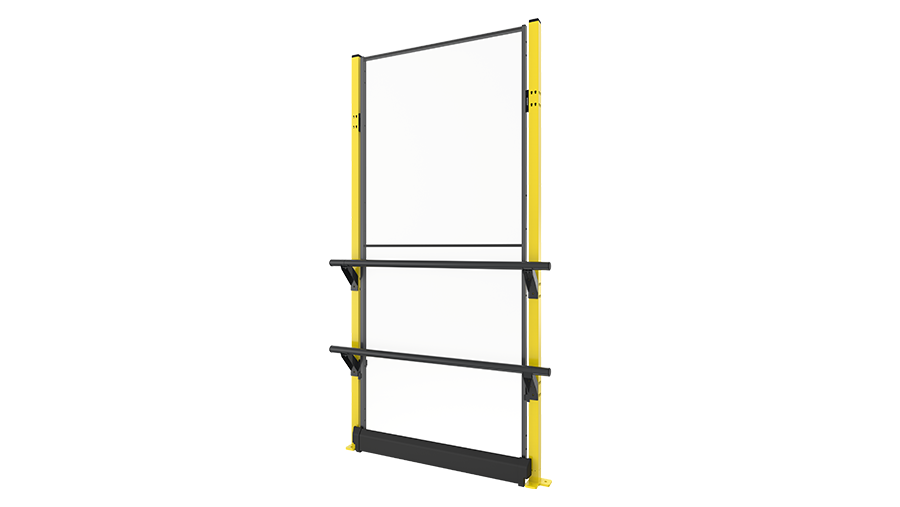

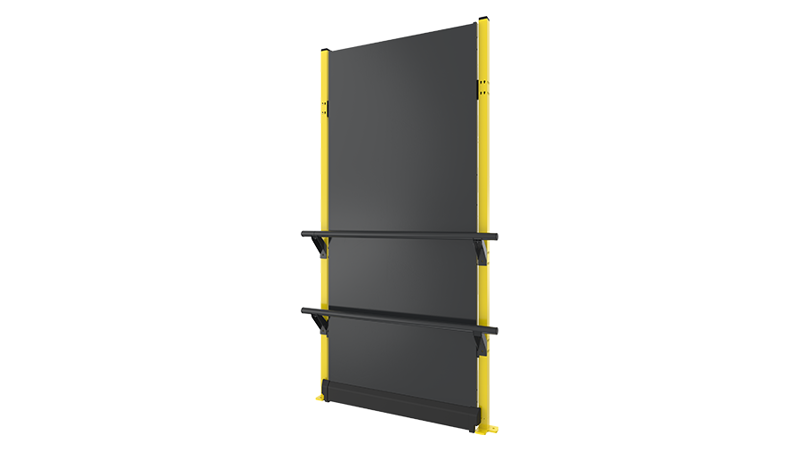

X-Rail 2300 mm can be used either without panels or with X-Guard Classic panels - mesh, plastic, and sheet metal.
Note! If no panel is used between the posts – Handrail, Knee rail and kick plate are used. If a panel is used between the posts, only the handrail and kickplate is mandatory.
