X-Rail Fall Protection height 2300 mm

Height 2300 mm with panel

3D
Our X-Rail fall protection system can be used as an edge protection for mezzanine floors. The system is a modification of our X-Guard range and therefore the system can fill dual purposes, mezzanine protection and machine guarding. Vraag hier uw offerte aan

Modellen

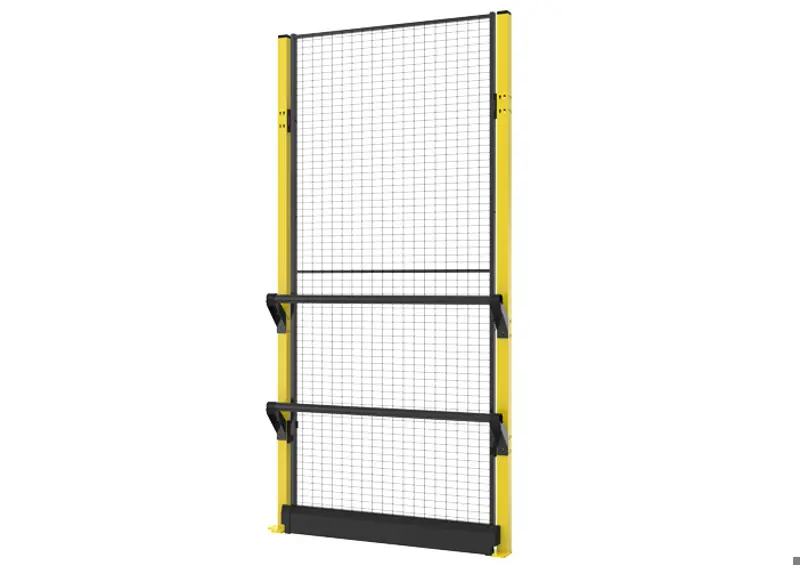

  • Mesh panels

    13 Artikelen
    CAD Artikel Hoogte (mm) Breedte (mm) Kleur
    W322-220025 2200 250 Grafiet zwart (RAL 9011)
    W322-220040 2200 400 Grafiet zwart (RAL 9011)
    W322-220050 2200 500 Grafiet zwart (RAL 9011)
    W322-220060 2200 600 Grafiet zwart (RAL 9011)
    W322-220070 2200 700 Grafiet zwart (RAL 9011)
    W322-220080 2200 800 Grafiet zwart (RAL 9011)
    W322-220090 2200 900 Grafiet zwart (RAL 9011)
    W322-220100 2200 1000 Grafiet zwart (RAL 9011)
    W322-220110 2200 1100 Grafiet zwart (RAL 9011)
    W322-220120 2200 1200 Grafiet zwart (RAL 9011)
    W322-220130 2200 1300 Grafiet zwart (RAL 9011)
    W322-220140 2200 1400 Grafiet zwart (RAL 9011)
    W322-220150 2200 1500 Grafiet zwart (RAL 9011)

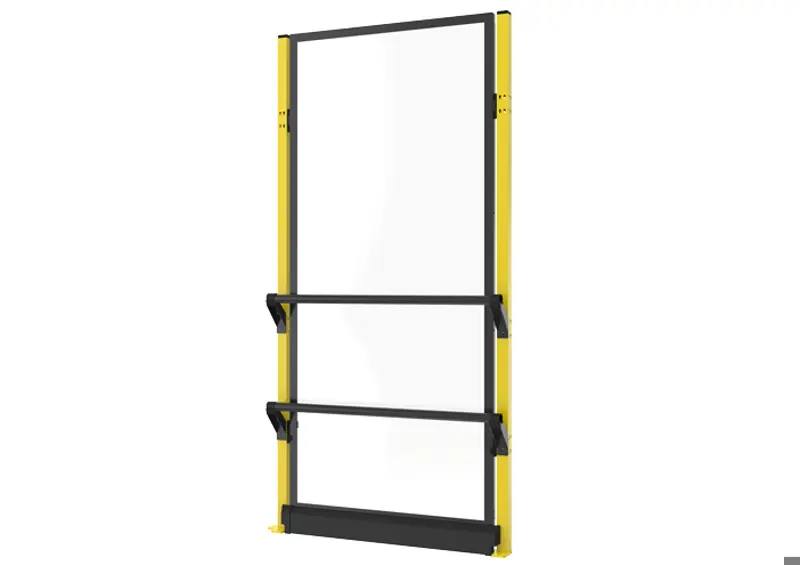

  • Plastic panels

    4 Artikelen
    CAD Artikel Hoogte (mm) Breedte (mm) Kleur
    W328-220025 2200 250
    W328-220040 2200 400
    W328-220070 2200 700
    W328-220100 2200 1000

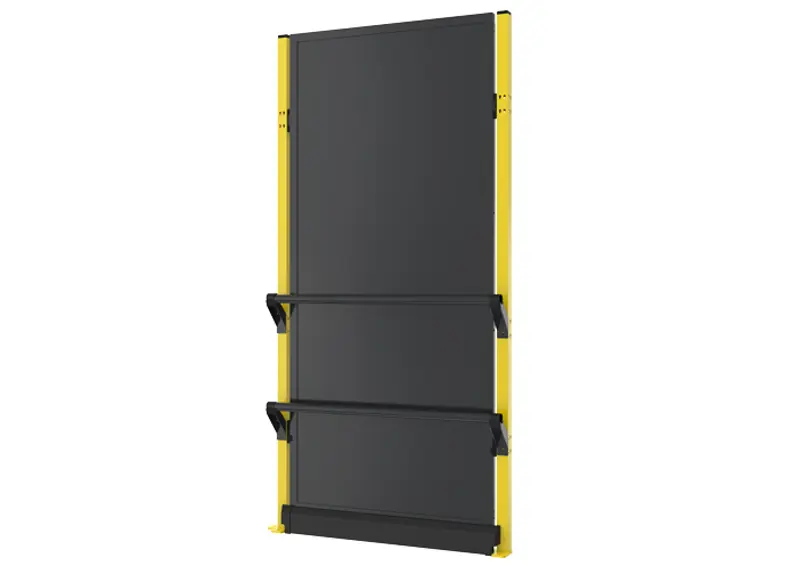

  • Sheet panels

    4 Artikelen
    CAD Artikel Hoogte (mm) Breedte (mm) Kleur
    W329-220025 2200 250
    W329-220040 2200 400
    W329-220070 2200 700
    W329-220100 2200 1000
  • Posts 50x50mm

    1 Artikelen
    CAD Artikel Hoogte (mm) Breedte (mm) Kleur
    P1170-230 2300 Zink geel (RAL 1018)

Downloads

Combination option for Counter plate

Productinformatie

Technische specificaties

Our X-Rail fall protection system can be used as an edge protection for mezzanine floors. The system is a modification of our X-Guard range and therefore the system can fill dual purposes, mezzanine protection and machine guarding.

X-Rail 2300 mm can be used either without panels or with X-Guard Classic panels - mesh, plastic, and sheet metal.

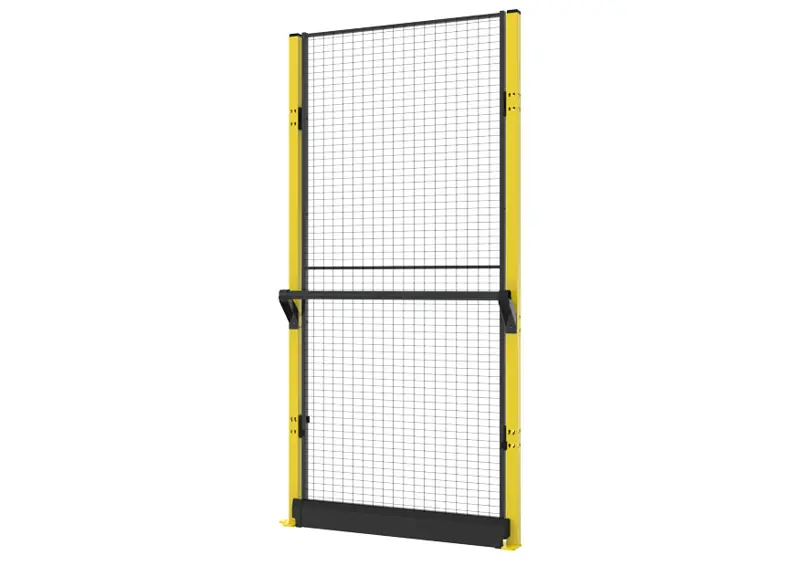

Note! If no panel is used between the posts – Handrail, Knee rail and kick plate are used. If a panel is used between the posts, only the handrail and kickplate is mandatory.
