Accessories

Handrail

3D
Available in length to fit panels with the width 1000 mm and 1500 mm. For other widths of panels, the handrail needs to be adjusted in length by being cut in place during assembly. Brackets for placement in keyholes are a standard default but if free placement is needed there is a seperated artic... Vraag hier uw offerte aan

Modellen

CAD Artikel Omschrijving

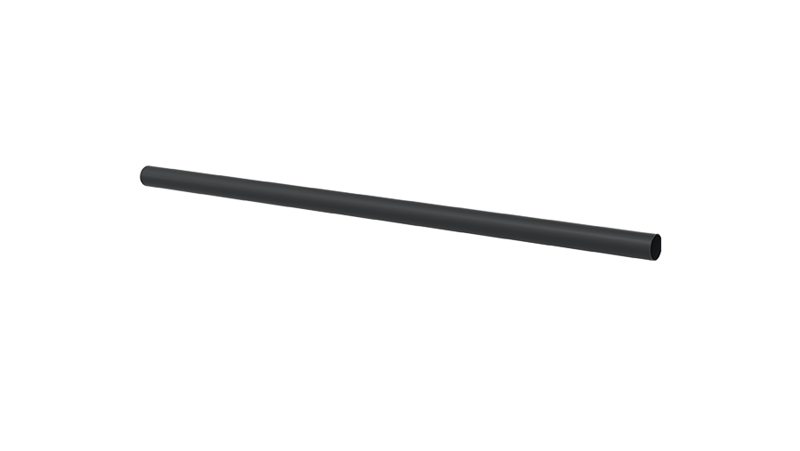

G258-107-3 Handrail L=1000m
1
G258-157-3 Handrail L=1500m
1

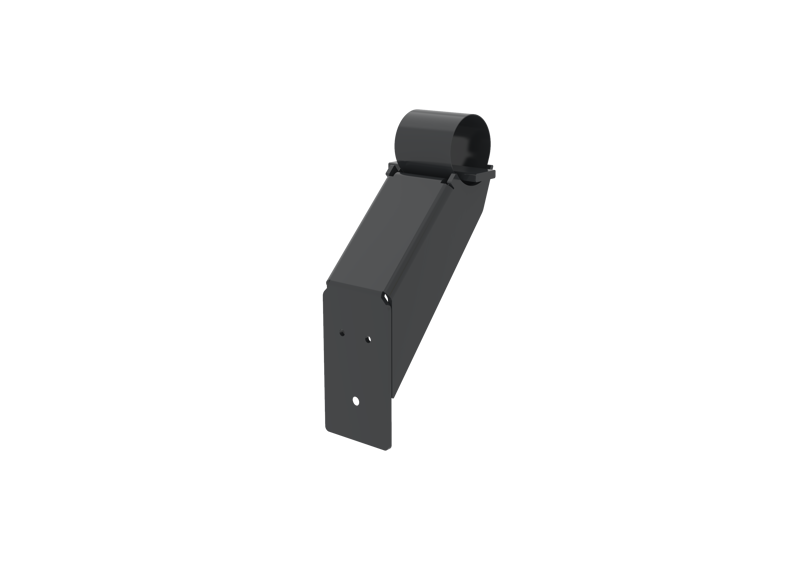

B00-059 Handrail fittings with selfdrilling screw, 1 KIT
1

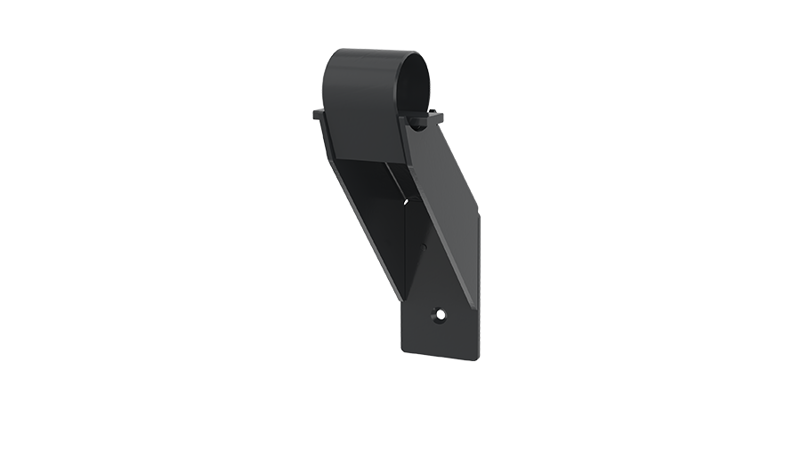

B00-060 Handrail fittings with rivet, 1 KIT
1
G3056 End plug
1
G2529 Handrail inner corner (with support arm)
1

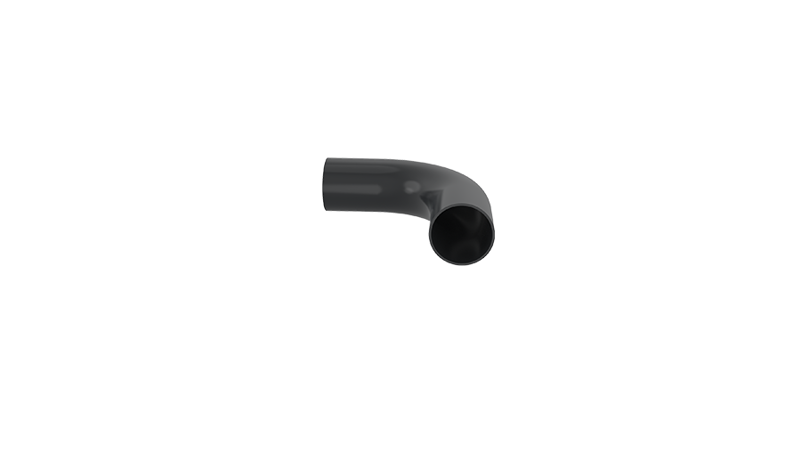

G2530 Handrail outer corner
1

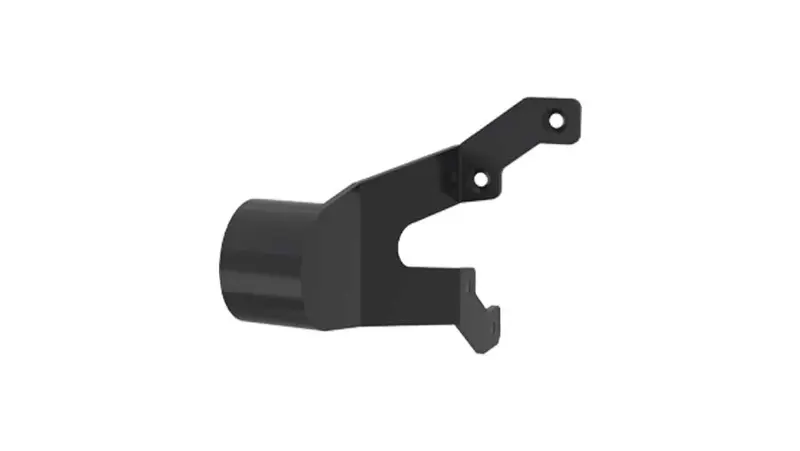

G2531 Handrail end
1
Meer weergevenMinder weergeven

Downloads

X-Rail Fall protection - brochure

Brochure

X-Rail Fall Protection - technical leaflet

Productinformatie

X-Rail assembly guide

Montagehandleiding

X-Rail Anchor Bolt

Montagehandleiding

Technische specificaties

Available in length to fit panels with the width 1000 mm and 1500 mm. For other widths of panels, the handrail needs to be adjusted in length by being cut in place during assembly. Brackets for placement in keyholes are a standard default but if free placement is needed there is a seperated article number.

The standard colour is RAL 9011 (only available in this color).
