Impact barriers

Impact high

3D

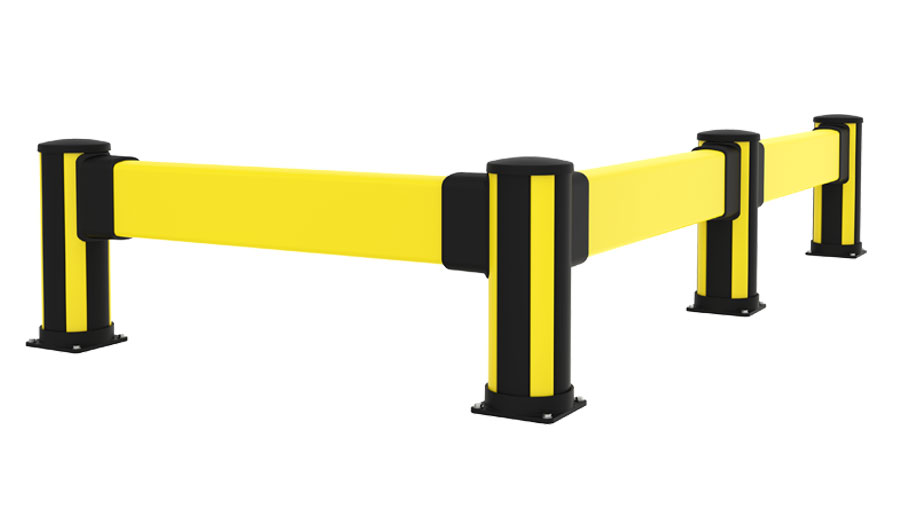

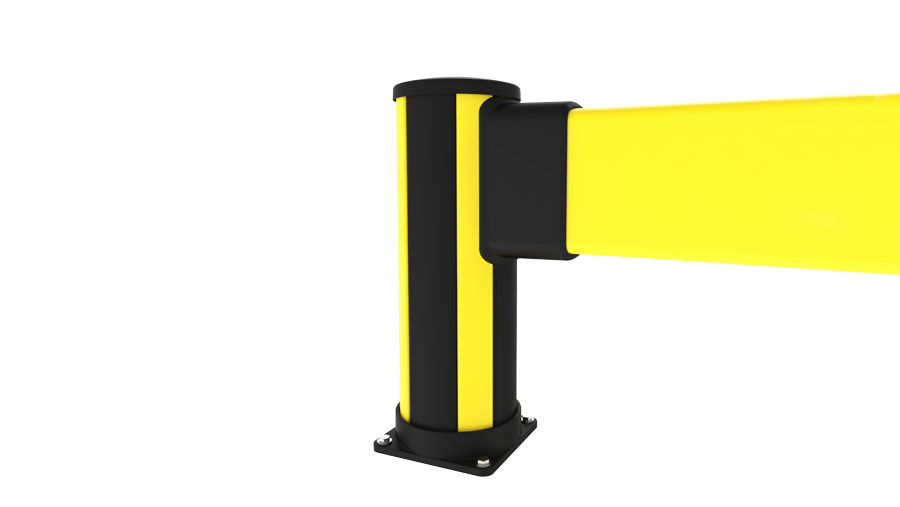

Use the X-Protect Impact High Barrier for high level impact protection. It is ideal for segregating light weight vehicles or defining warehouse zones. Our modular rails and bollards allow for damaged or worn parts to be replaced at a component level. If you need to replace any component - it is j...

Vraag hier uw offerte aan

Modellen

CAD Artikel Hoogte (mm) Lengte (mm) CC (mm) Kleur Omschrijving
RCI1-277-0300 2770 3000 Zink geel (RAL 1018) Impact rail
RCI1-227-0250 2270 2500 Zink geel (RAL 1018) Impact rail
RCI1-177-0200 1770 2000 Zink geel (RAL 1018) Impact rail
RCI1-127-0150 1270 1500 Zink geel (RAL 1018) Impact rail
RCI1-077-0100 770 1000 Zink geel (RAL 1018) Impact rail
RCI1-047-0070 470 700 Zink geel (RAL 1018) Impact rail
RCI1-027-0050 270 500 Zink geel (RAL 1018) Impact rail
BCC1-061-I100 610 Zink geel (RAL 1018) Impact High corner
1
BCC0-061-I100 610 Zink geel (RAL 1018), Grafiet zwart (RAL 9011) Impact High corner
BCM1-061-I100 610 Zink geel (RAL 1018) Impact High mid
1
BCM0-061-I100 610 Zink geel (RAL 1018), Grafiet zwart (RAL 9011) Impact High mid
BCE1-061-I100 610 Zink geel (RAL 1018) Impact High end
1
BCE0-061-I100 610 Zink geel (RAL 1018), Grafiet zwart (RAL 9011) Impact High end

Downloads

X-Protect Impact high

Handleiding

Technische specificaties

Use the X-Protect Impact High Barrier for high level impact protection. It is ideal for segregating light weight vehicles or defining warehouse zones.

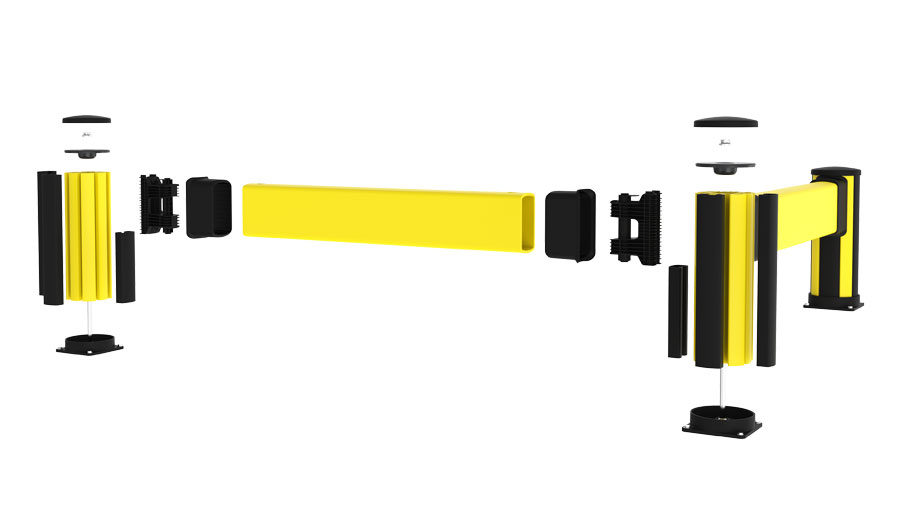

Our modular rails and bollards allow for damaged or worn parts to be replaced at a component level. If you need to replace any component - it is just a slide away.

X-Protect is a unique approach to safety barriers. Unrivalled modularity, using only a few system components and damping that is built in to create a barrier system that changes with your work place. X-Protect allows rapid transformation, repair or replacement of existing barriers and bespoke configurations are limitless.
