Impact barriers

Double impact low

3D

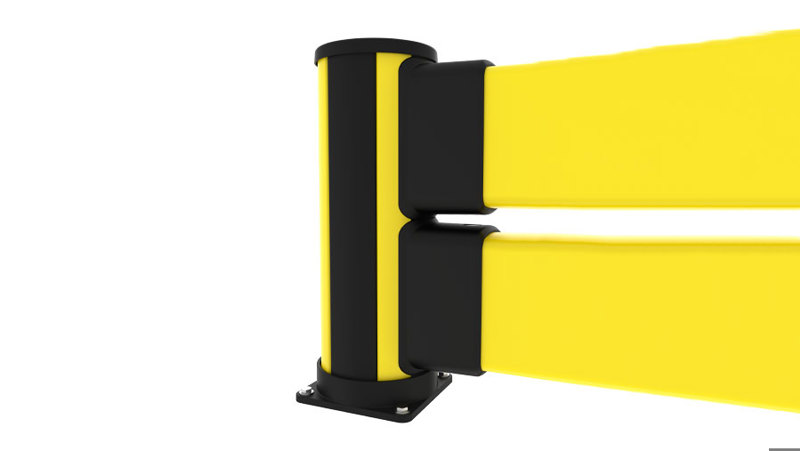

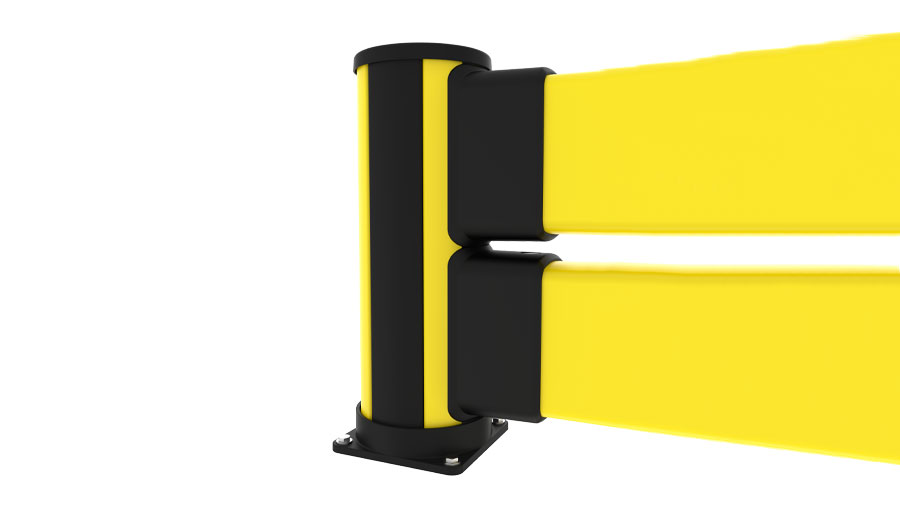

Use the X-Protect Double Impact Low Barrier configuration to protect structures from ground level, heavy duty impacts. It is one of our strongest Impact protection configurations and also ideal for protecting pallet racking. Our modular rails and bollards allow for damaged or worn parts to be rep...

Vraag hier uw offerte aan

Modellen

CAD Artikel Hoogte (mm) Lengte (mm) CC (mm) Kleur Omschrijving
BCE0-061-I200 610 Zink geel (RAL 1018), Grafiet zwart (RAL 9011) Double Impact Low end
1
BCE1-061-I200 610 Zink geel (RAL 1018) Double Impact Low end
BCM0-061-I200 610 Zink geel (RAL 1018), Grafiet zwart (RAL 9011) Double Impact Low mid
1
BCM1-061-I200 610 Zink geel (RAL 1018) Double Impact Low mid
BCC0-061-I200 610 Zink geel (RAL 1018), Grafiet zwart (RAL 9011) Double Impact Low corner
1
BCC1-061-I200 610 Zink geel (RAL 1018) Double Impact Low corner
RCI1-027-0050 270 500 Zink geel (RAL 1018) Impact rail
RCI1-047-0070 470 700 Zink geel (RAL 1018) Impact rail
RCI1-077-0100 770 1000 Zink geel (RAL 1018) Impact rail
RCI1-127-0150 1270 1500 Zink geel (RAL 1018) Impact rail
RCI1-177-0200 1770 2000 Zink geel (RAL 1018) Impact rail
RCI1-227-0250 2270 2500 Zink geel (RAL 1018) Impact rail
RCI1-277-0300 2770 3000 Zink geel (RAL 1018) Impact rail

Downloads

X-Protect Double impact low

Handleiding

Technische specificaties

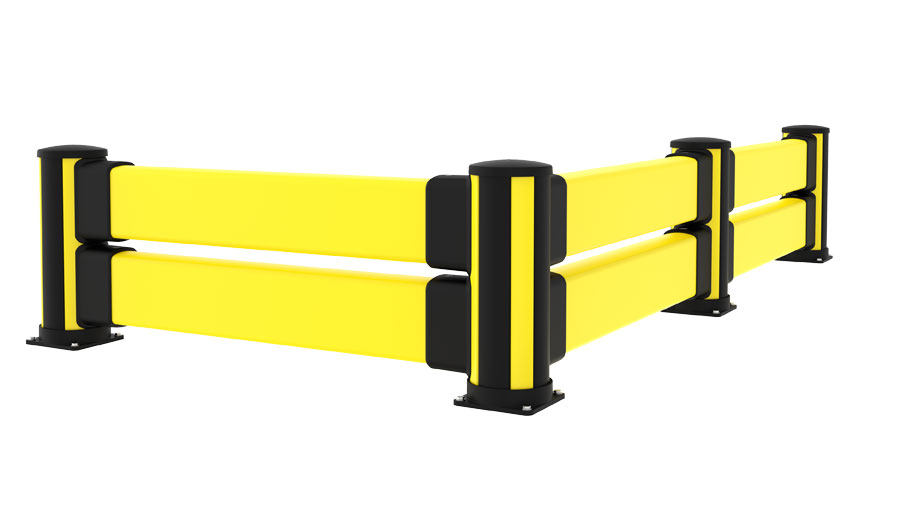

Use the X-Protect Double Impact Low Barrier configuration to protect structures from ground level, heavy duty impacts. It is one of our strongest Impact protection configurations and also ideal for protecting pallet racking.

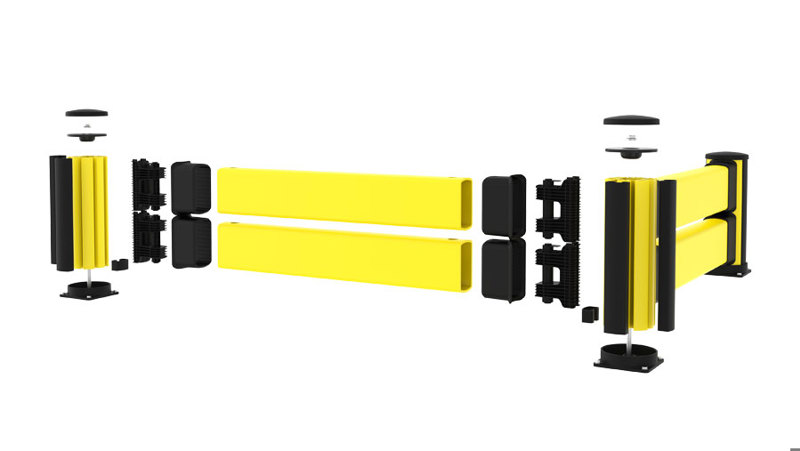

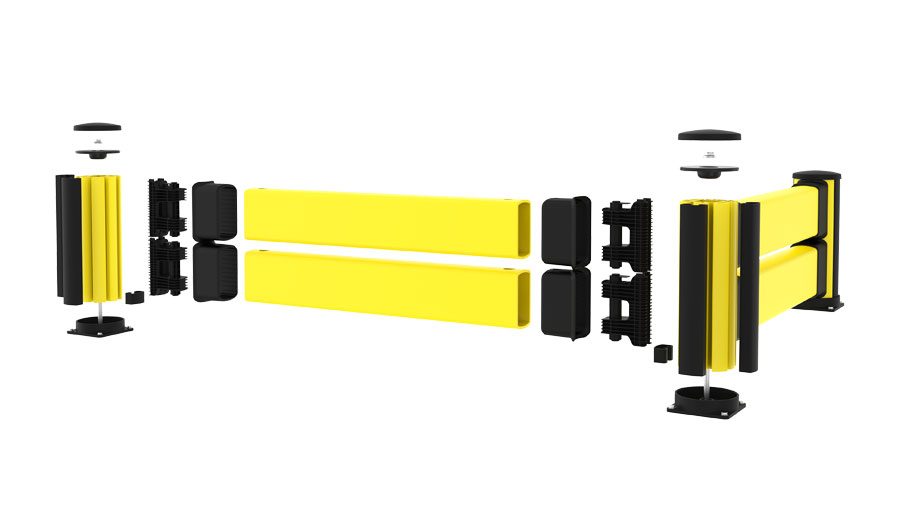

Our modular rails and bollards allow for damaged or worn parts to be replaced at a component level. If you need to replace any component - it is just a slide away.

X-Protect is a unique approach to safety barriers. Unrivalled modularity, using only a few system components and damping that is built in to create a barrier system that changes with your work place. X-Protect allows rapid transformation, repair or replacement of existing barriers and bespoke configurations are limitless.
